Hydrogen production plant, 7,5MW capacity of alkaline electrolyser
Client
Location
Job
Renewable Energies
Object
New hydrogen production plant with 7.5MW capacity of alkaline electrolyser.
Activities performed

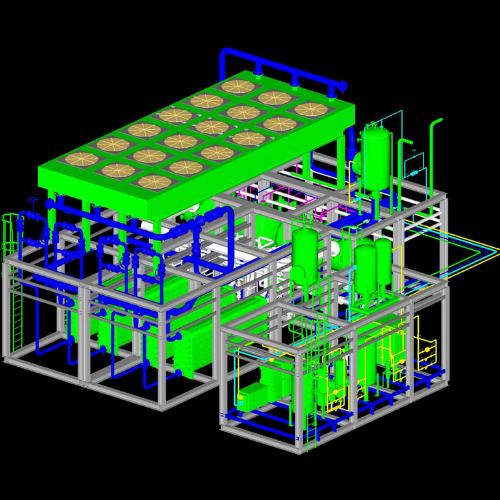

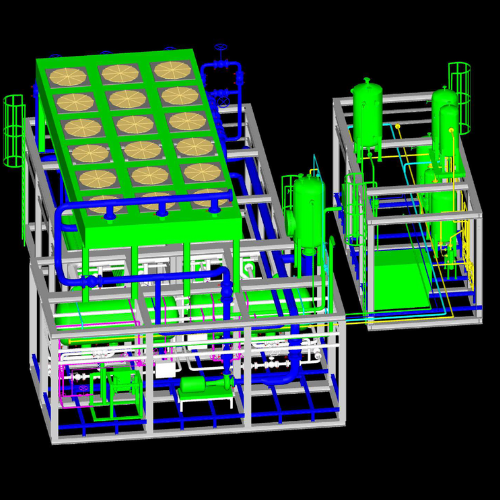

MULTIDISCIPLINARY detailed design: Process, Piping (including Autocad
Plant 3D development), MEP, Instrumentation & Automation.
Tecnichal bid evaluations for plant items/packages procurement.
Period of performance
2022 – 2023
Project description
Seingim has developed the engineering for the design of a new modular plant,
consisting of several containers, for the production, storage and distribution
of hydrogen from an electrolytic process (alkaline electrolysis of water). The
new plant will have an installed capacity of 7.5 MW, with a hydrogen gas productivity
of about 1760 Nm3/hour (wet gas from electrolysers) at a maximum
pressure of 30 bar g.
Gallery
